Our rugged work vessels are specially designed for survey operations. We currently have two vessels available, our 24' aluminum skiff which is trailerable and suitable for sidescan sonar surveys and diving operations. Our larger 40' aluminum Madiera is well equipped to support ROV operations where a larger work platform and hydraulics are necessary.

Our survey vessels can be outfitted with specialized equipment including: Sidescan Sonar, Multibeam Sonar, Remote Operated Vehicle with Scanning Sonar, Sub-Bottom Profiler, USBL, Acoustic Tracking, Motion Reference Units, Hypack and Nobeltech Navigation Software, Environmental Sampling Equipment, Underwater Video and Drop Cameras, Diver Communication System

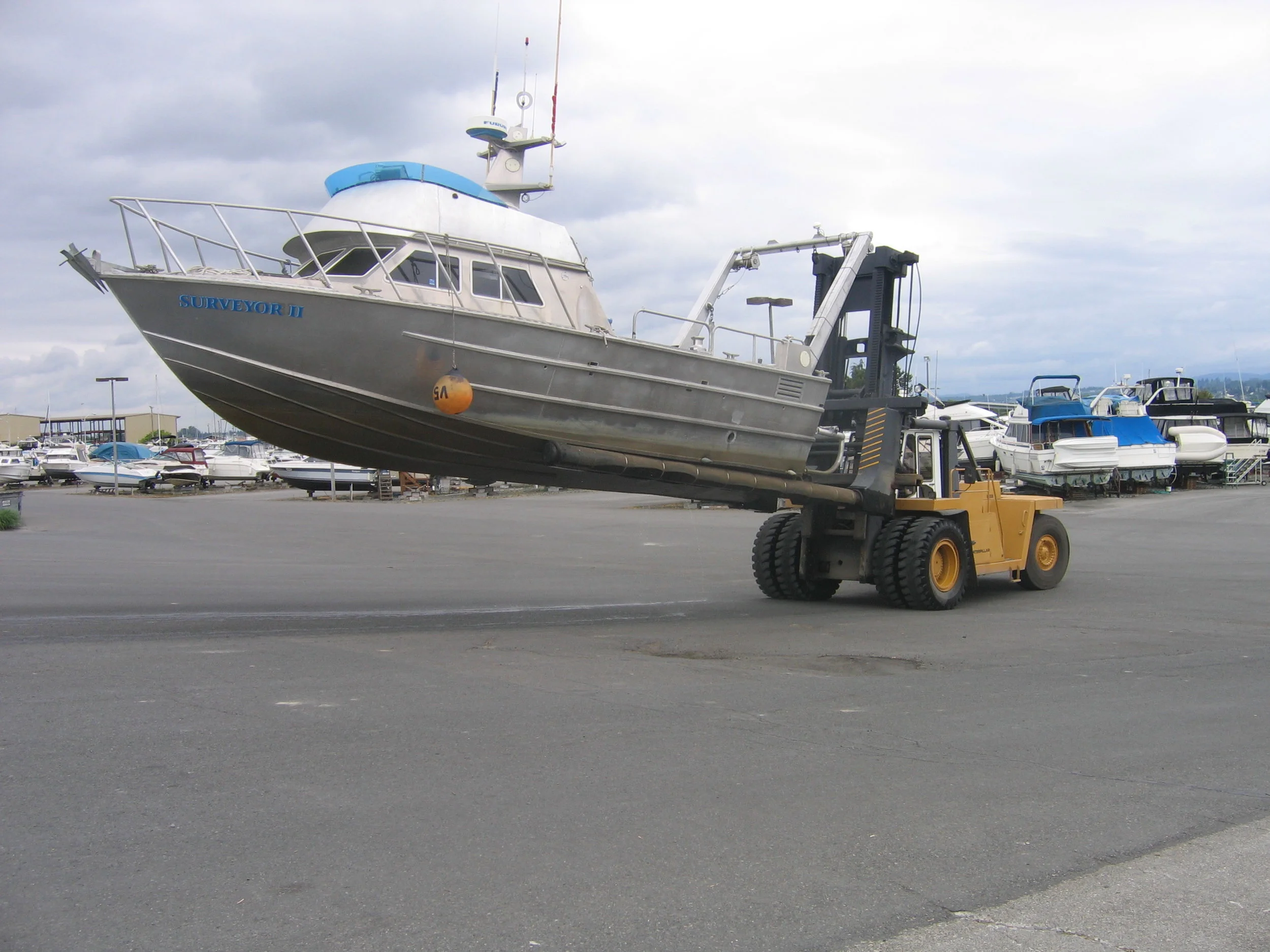

Surveyor II



Surveyor II Specifications

  • Make: Madiera

  • Name: Surveyor II

  • USCG Vessel No. 990939

  • Hull: Aluminum

  • Length: 44'

  • Beam: 14'

  • Draft: 3.5'

  • Deck Space: 18.5' x 11'

  • Power: Twin 330hp Cummins Diesels

  • ZF Marine Gear w/Troll Valve

  • Konrad Inboard/Outboard Drives

  • Trim Tabs

  • Cruise Speed: 19kts

  • Top Speed: 32ktsFuel Capacity: 500gal

  • Potable Water: 40gal

  • U-Frame - 4K lb

  • Capstans - 3K lb

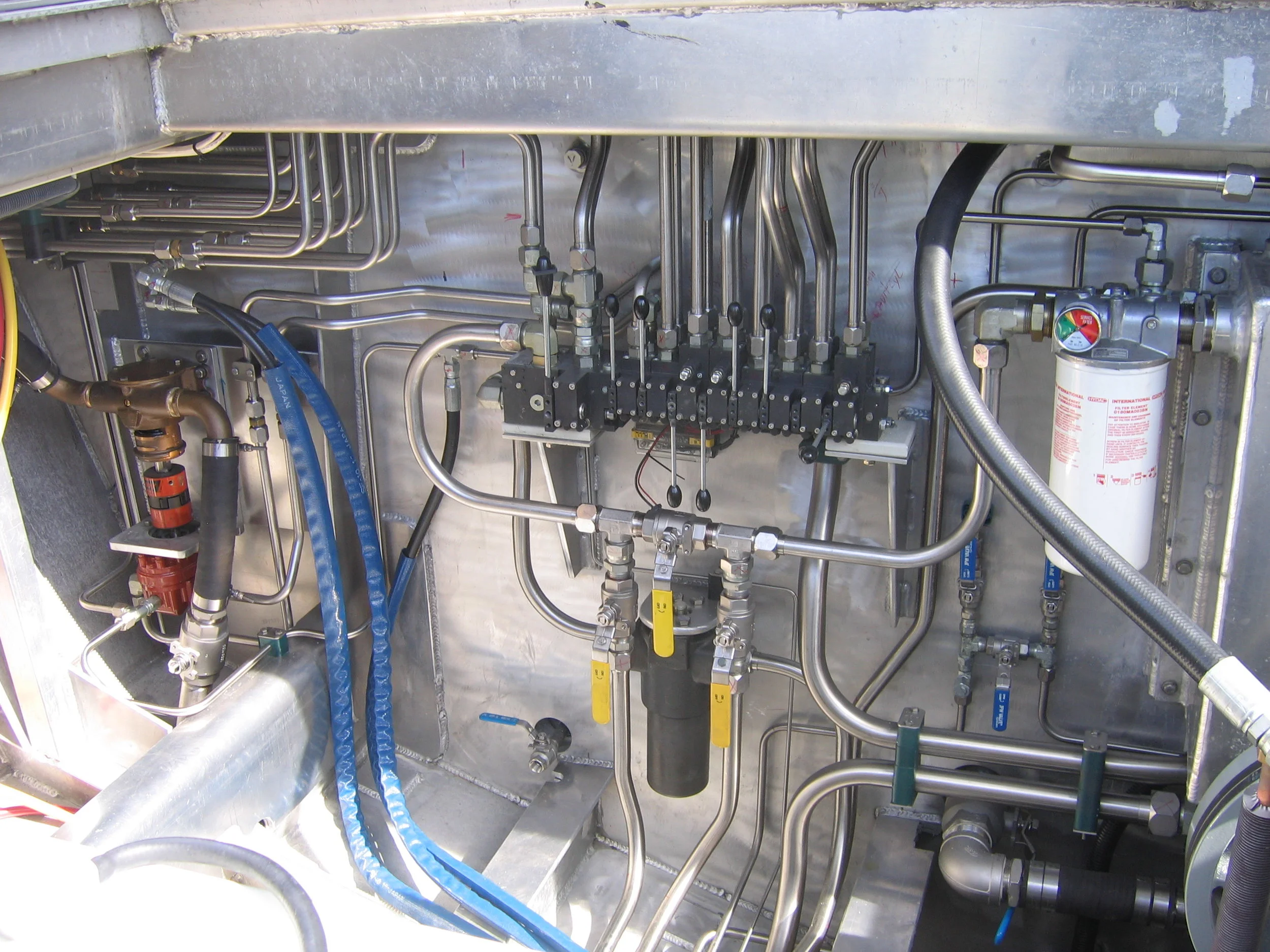

  • Twin 3.8ci Hydraulic Pumps

  • 30gal per min Tool Hydraulics

  • Hawe Radio Controlled Valves Throughout

  • 1.25 in. Seawater Washdown

  • Furuno 24 Mile Radar

  • Differential GPS

  • Dive Platform

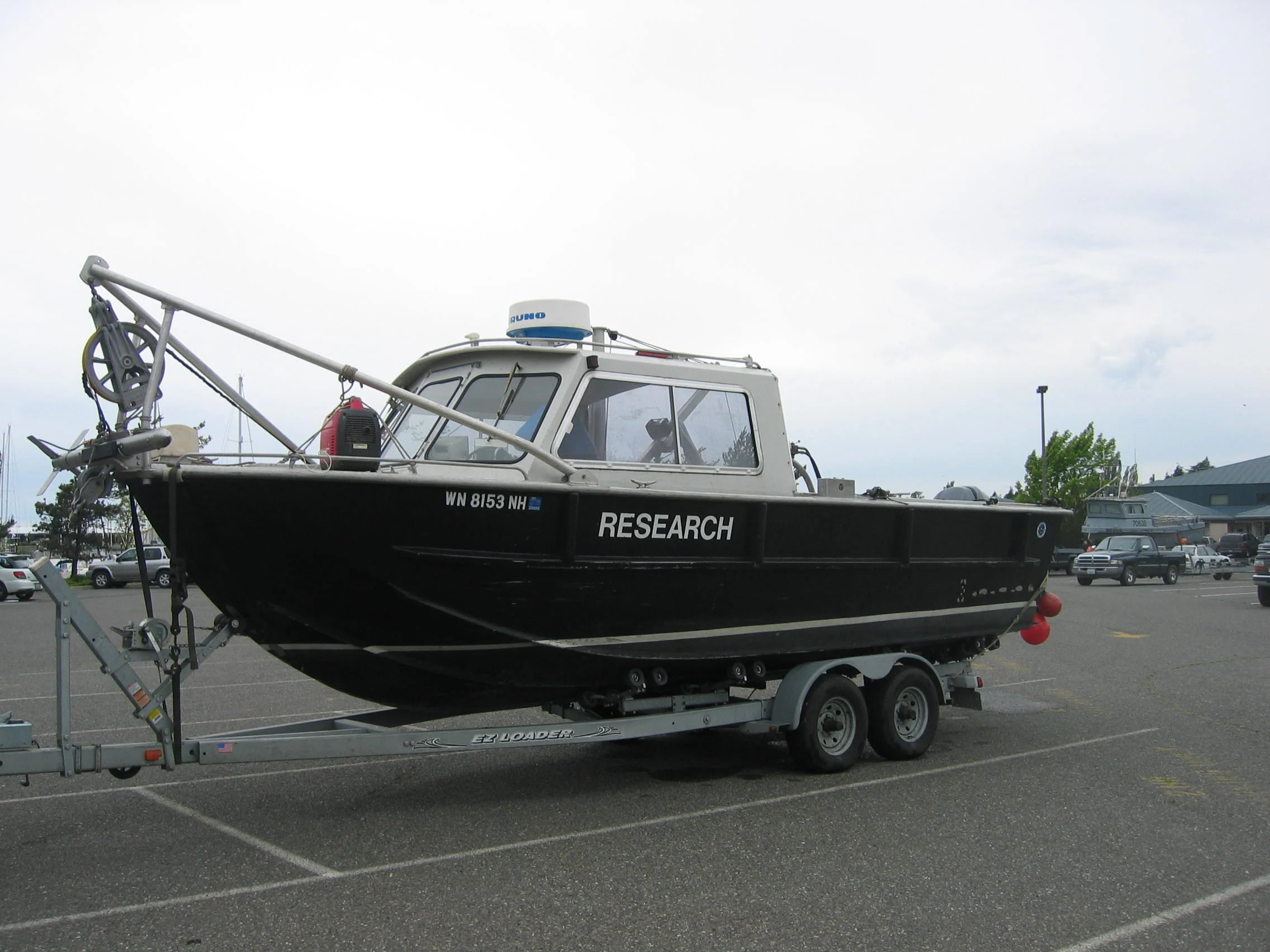

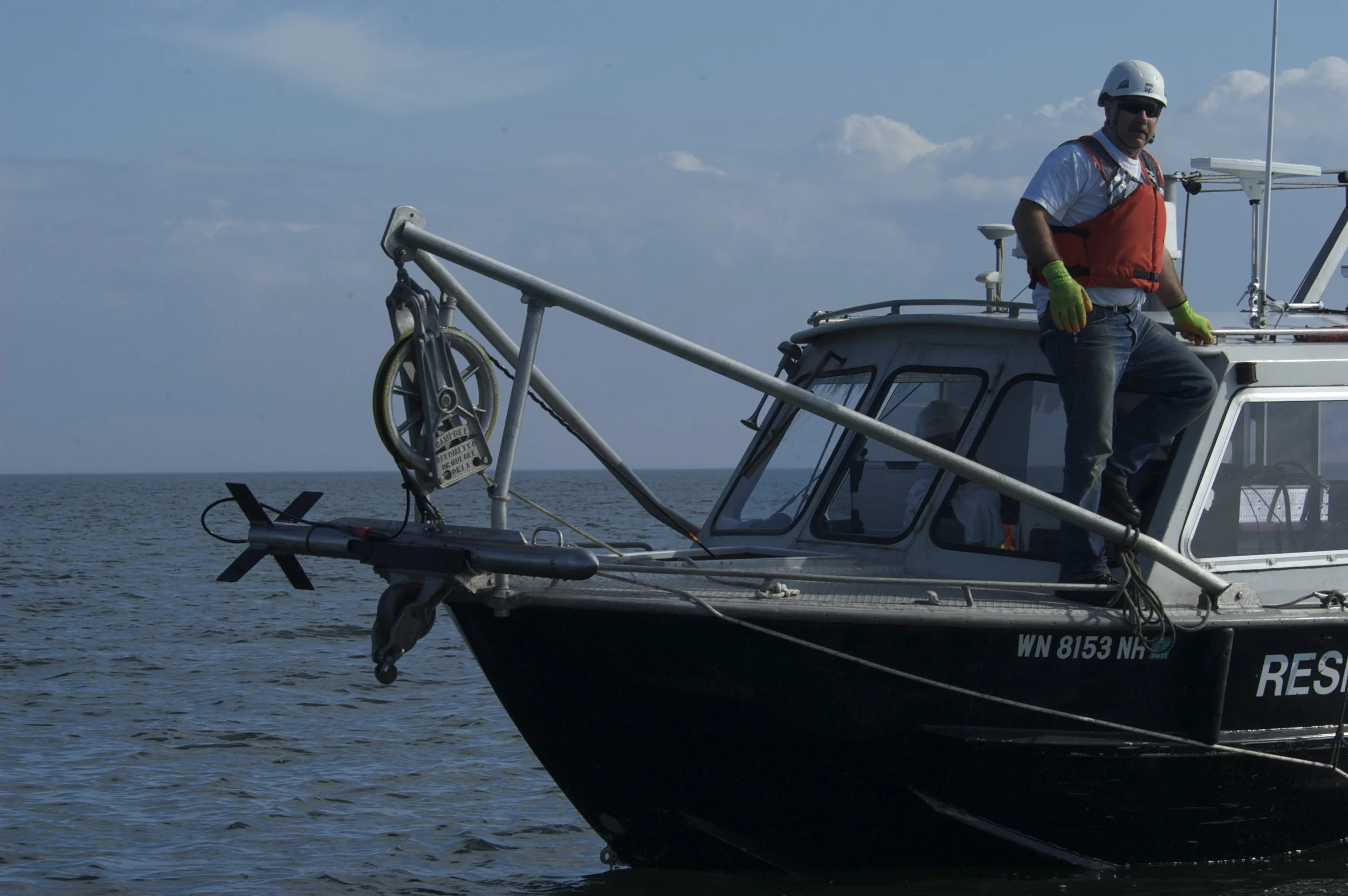

Eaglecraft



Eaglecraft Specifications

  • Honda 2000 or 6500 Generator

  • 300lb Swing Davit

  • Pole Mounts

  • A-Frame with Stringing Block

  • 300M Sidescan Winch

  • Dive Door

  • Scuba Tank Racks

  • Hemisphere Differential GPS

  • Furuno Radar

  • Ratheon V800 Sounder

  • Hull: Aluminum

  • Length: 24'

  • Overall Length: 28'

  • Beam: 9'3"

  • Power: Yamaha Outboard

  • 225 hp 4 cycle

  • Fuel Capacity 60gal

  • Clutched-in Speed 3kts

  • Top Speed 32kts

  • Hydraulics - 9gal/min @1500psi

  • Power Block
